Opis
Opis:
Application:

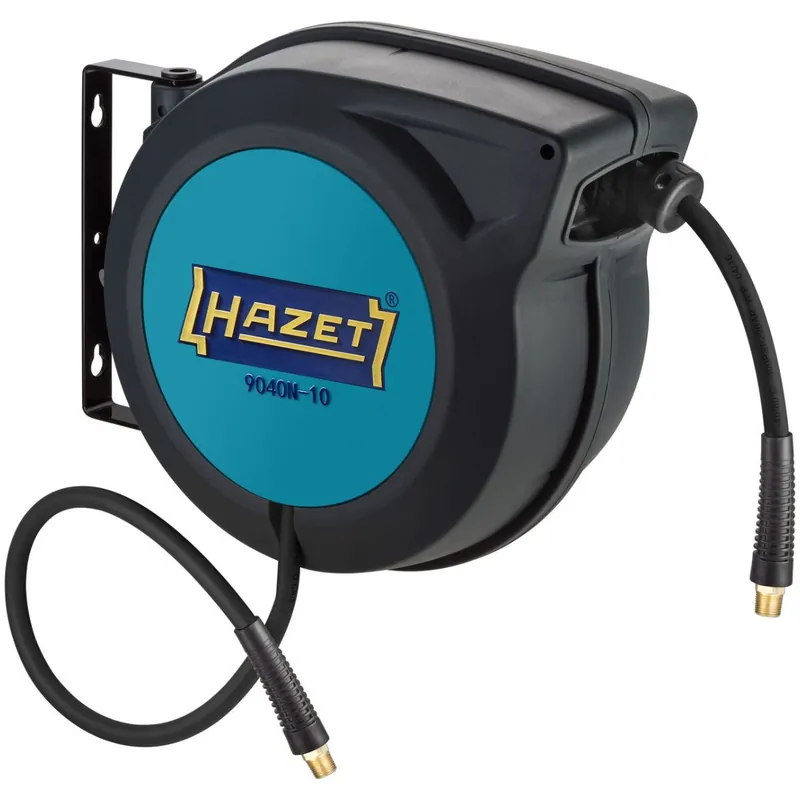

Automatic hose reel offers tidiness in the workshop – hose not left lying around, thus reducing the risk of accidents
- Hose stop at any point with “Stop at any point” function
- Neat winding of the hose thanks to automatic guidance
- Braked winding to prevent risk of accidents
- Inside diameter of the hose: 10 mm
- Suitable for compressed air or water
- Dimensions: 459 x 378 x 205 mm
- Dimensions (packed): 465 x 400 x 220 mm
- Hybrid polymer hose, black
- Length of connection hose: 0.9 m
- Integrated drill template for mounting on cardboard packaging
- Thread BSPT
- Meets all relevant requirements defined in the European Directives for Machinery 2006/42/EC
- Optionally usable with HAZET safety coupling 9000-061
- Closed special plastic case, supplied with rotating metal mounting bracket made for separate installation at the workplace
- Borehole spacing of the mounting bracket: 186 mm
- Air connection inlet: Outside thread 16.41 mm (3/8″)
- Air connection outlet: Outside thread 16.41 mm (3/8″)
- Hose length: 15 m
- Max. working pressure [bar]: 20 bar
- Net weight: 6.45 kg
- Temperature range: -40°C – 60°C
