Opis
Opis:

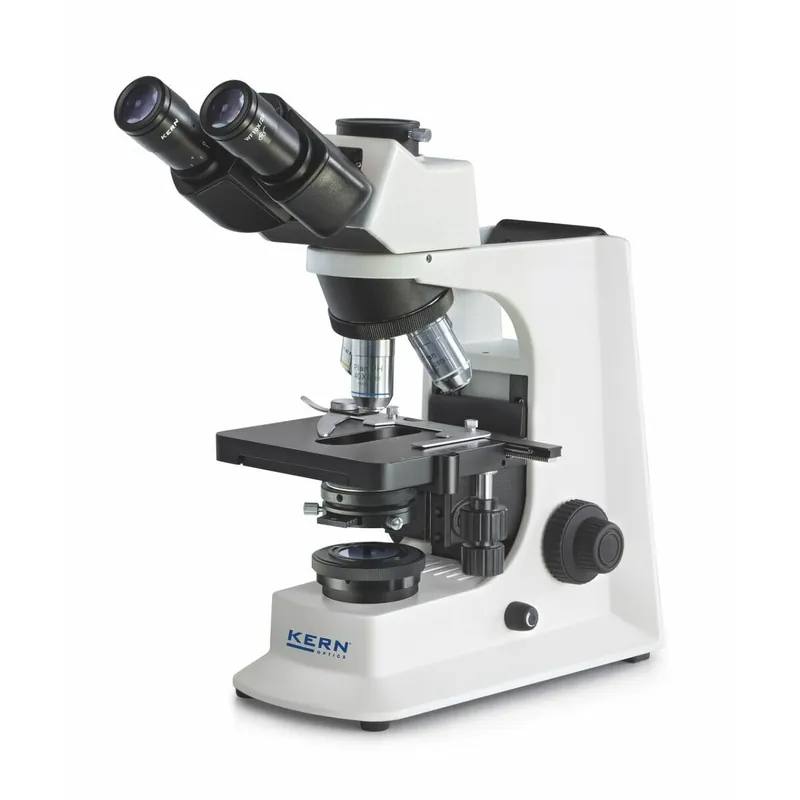

- The OBL series stands out through its infinity optical unit and is therefore ideally suited for all demanding transmitted illumination applications. The robust and ergonomic stand base guarantees safe and comfortable working
- Strong and continuously dimmable 3W-LED illumination
- The fixed, pre-centred and focusable 1,25 Abbe condenser with aperture diaphragm and field diaphragm gives you a simplified Koehler illumination, without having to move the centre
- The large mechanical stage and its specimen holder holds up to two samples at the same time and is quick and easy to focus using a coaxial coarse and fine focusing knob on both sides
- A large selection of eyepieces, objectives and colour filters as well as a darkfield condenser, a simple polarising unit, different
- phase contrast kits through to HBO and LED fluorescence units are available to you as accessories
- A protective dust cover, eye cups, as well as multi-lingual user instructions are included in the scope of delivery
- Scope of application: haematology, urology, gynaecology, dermatology, pathology, microbiology and parasitology, immunology, oncology, entomology, Veterinary, water analysis, breweries
- Applications/Samples: Translucent, thin, low-contrast, challenging samples (e.g. living mammal cells, bacteria, tissue)
Cecha szcz.:
- Infinity optical system
- 4-fold lens revolving unit
- Siedentopf 30° inclined/ 360° rotatable
- Diopter adjustment one-sided
- Overall dimensions max. W×D×H 395×200×380 mm
- Net weight approx. 7 kg
- Infinity optical system
- 4-fold lens revolving unit
- Siedentopf 30° inclined/ 360° rotatable
- Diopter adjustment one-sided
- Overall dimensions max. W×D×H 395×200×380 mm
- Net weight approx. 7 kg
