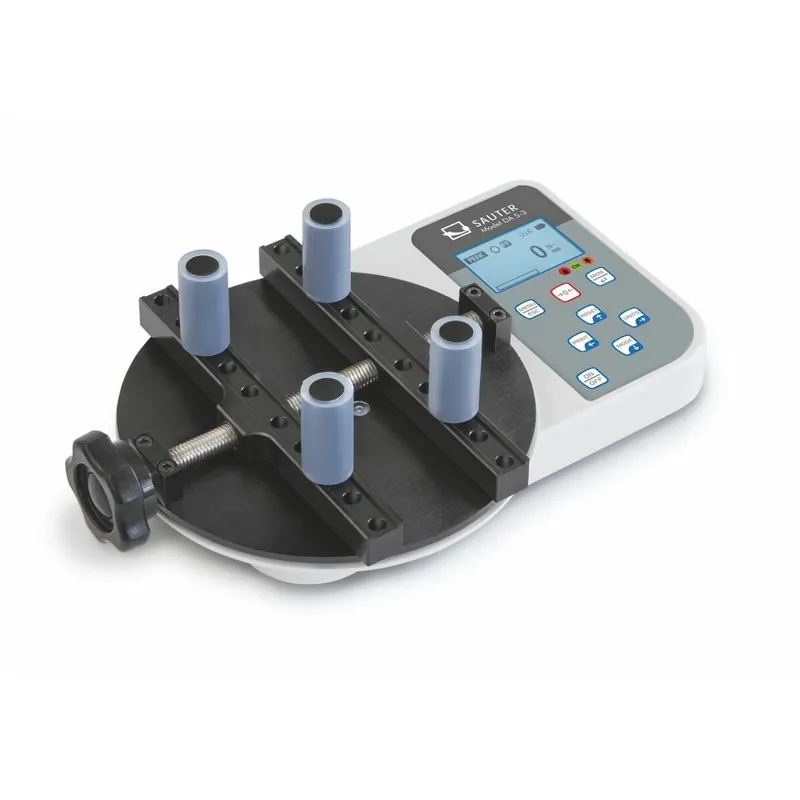

Torque gauge DA 10-3, measuring range 10 Nm, readout 0,002 Nm, Internal measuring frequency 1000 Hz Sprawdź teraz

Opis

Opis:

• Optimised for torque testing of bottles, jars and other packaging with screw tops with a minimum diameter of 15 mm and a maximum diameter of 160 mm, in the food industry and pharmaceutical industry, as well as in the manufacturing of cosmetics such as, for example, lipsticks, etc
• Internal data memory saves up to 500 measurements. The memory contents can be transferred to the PC using optional software
• AUTO-OFF function
• Quick pin system: The four bottle mounts (holders) are pushed in, instead of being screwed in, to save time. This allows you to reconfigure quickly for other bottle sizes
• Robust metal housing for permanent use under harsh environmental conditions
• Peak hold function to capture the peak value or Track function for continuous display of measurement
• Scope of delivery: four bottle mounts with rubber coat, sturdy carrying case
• Data interface USB and RS-232 included
• Measuring with tolerance range (limit-setting function): Upper and lower limiting can be programmed individually. The process is supported by an audible and visual signal
• Rubber feet with anti-slip feature
• LCD graphics display with backlight
• Capacity display: A bargraph display lights up to show how much of the weighing range is still available
• Can be used in both directions of rotation

Cecha szcz.:

• Internal measuring frequency: 1000 Hz
• Net weight approx. 3,0 kg
• Overload protection: 120% of [Max]
• Overall dimensions W×D×H 250×160×60 mm
• Selectable measuring units: Nm, lbf-in, kgf-cm, kgf-m, ft-lbf
• Measuring precision: ± 0,5% of [Max]
• Internal rechargable battery pack, operating time up to 18 h without backlight, charging time approx. 14 h
• Usable measuring range: 5 – 100 % of [Max]
