Opis
Opis:

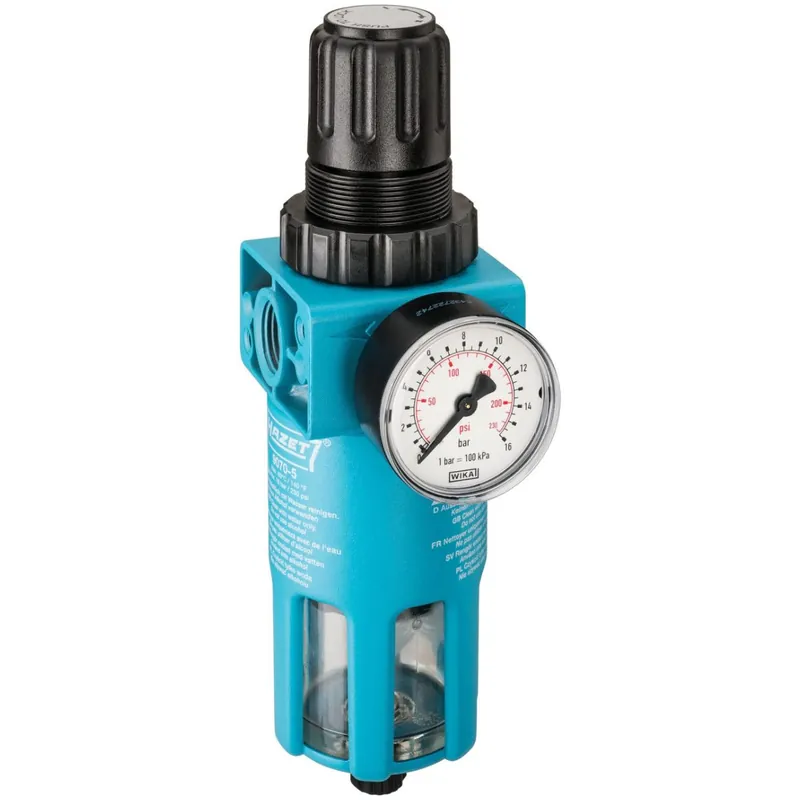

- Consisting of filter-pressure reducer and manometer
- Air inlet thread 20.67 mm (1⁄2″)
- Air flow at 6.3 bar: 5000 Nl/min
- Connection manometer: 3.2 mm (1/8″)
- Max. pressure: 16 bar (1/2″ and 3/8″) 12 bar (1/4″),
Maximum working pressure: 12 bar (1/2″ and 3/8″) 10 bar (1/4″)
- Pressure indication: 0.5 – 12 bar
- Filter grade: 10 µm
- Capacity filter-pressure reducer: 50 ml
- Net weight: 0.89 kg
- Temperature range: -10°C – 55°C
Maximum working pressure: 12 bar (1/2″ and 3/8″) 10 bar (1/4″)
