Opis
Opis:

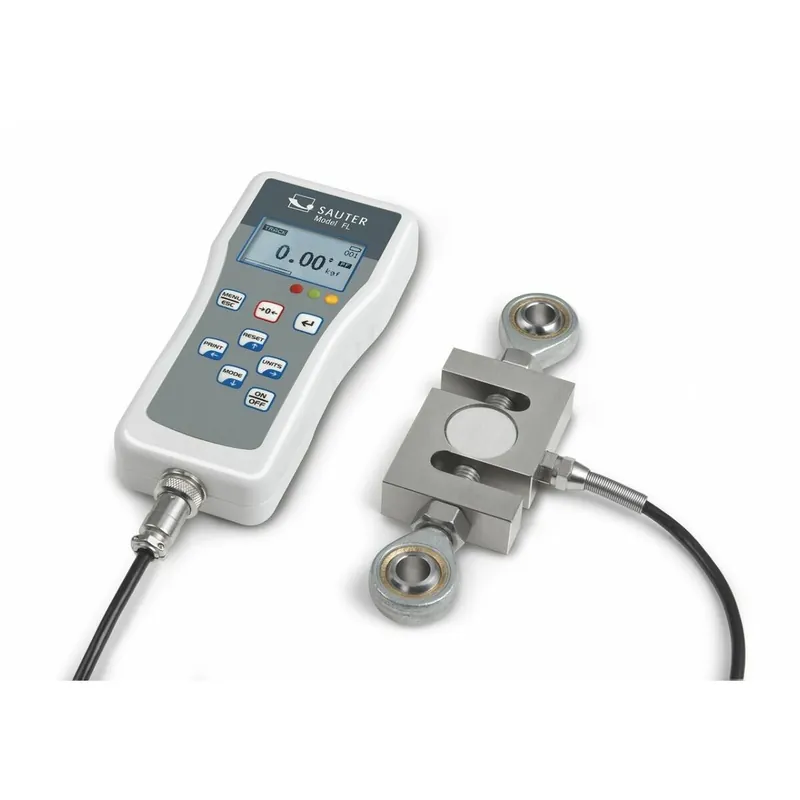

- Premium force-measuring device with external measuring cell, tension loops and pressure plates included with delivery
- Turnable display with backlight
- Peak hold function to capture the peak value or Track function for continuous display of measurement
- Robust metal housing for permanent use under harsh environmental conditions
- Can be mounted on all SAUTER test stands
- Capacity display: A bargraph display lights up to show how much of the weighing range is still available
- Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal
- Internal memory
- Continuous analogue output: Linear voltage signal in dependence to the load (-2 to +2V)
- Delivered in a robust carrying case
- Data interface RS-232 standard
- USB interface, standard
Cecha szcz.:
- Internal measuring frequency: 1000 Hz
- Measuring precision: 0,2% of [Max]
- Overload protection: 120% of [Max]
- Housing dimensions WxDxH 175×75×30 mm
- Dimensions load cell W×D×H 76,2 x 51 x 19 mm
- Thread: M12
- Internal rechargeable battery pack, operating time up to 10 h without backlight, charging time approx. 8 h
- Net weight approx. 0,55 kg
- Internal measuring frequency: 1000 Hz
- Measuring precision: 0,2% of [Max]
- Overload protection: 120% of [Max]
- Housing dimensions WxDxH 175×75×30 mm
- Dimensions load cell W×D×H 76,2 x 51 x 19 mm
- Thread: M12
- Internal rechargeable battery pack, operating time up to 10 h without backlight, charging time approx. 8 h
- Net weight approx. 0,55 kg
