Application:
Operation of cardan shaft screw connection in the wheel hub on VW Touareg model year 2003 →
AUDI A4 model year 2001 →, A6 model year 2005 →, A8 model year 2003 →, Q7 model year 2007 →
- With borehole for locking pin or safety spring and grove for O-ring
- Surface: phosphatized, oiled
- DIN 3129, ISO 2725-2
- Made in Germany

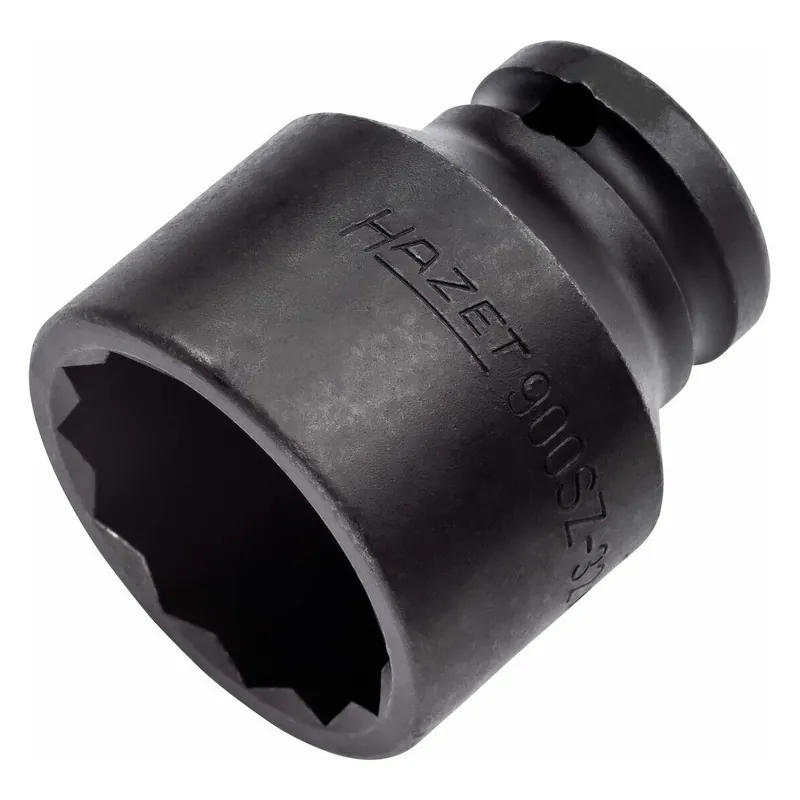

- Drive: Square, hollow 12.5 mm (1/2 inch)
- Output: Outside 12-point traction profile
- Wrench size: 32 mm
- Dimensions / length: 50 mm
- Diameter d1 (output side): 44.5 mm
- Diameter d2 (drive side): 30 mm
- Net weight: 0.22 kg
- For impact operation
