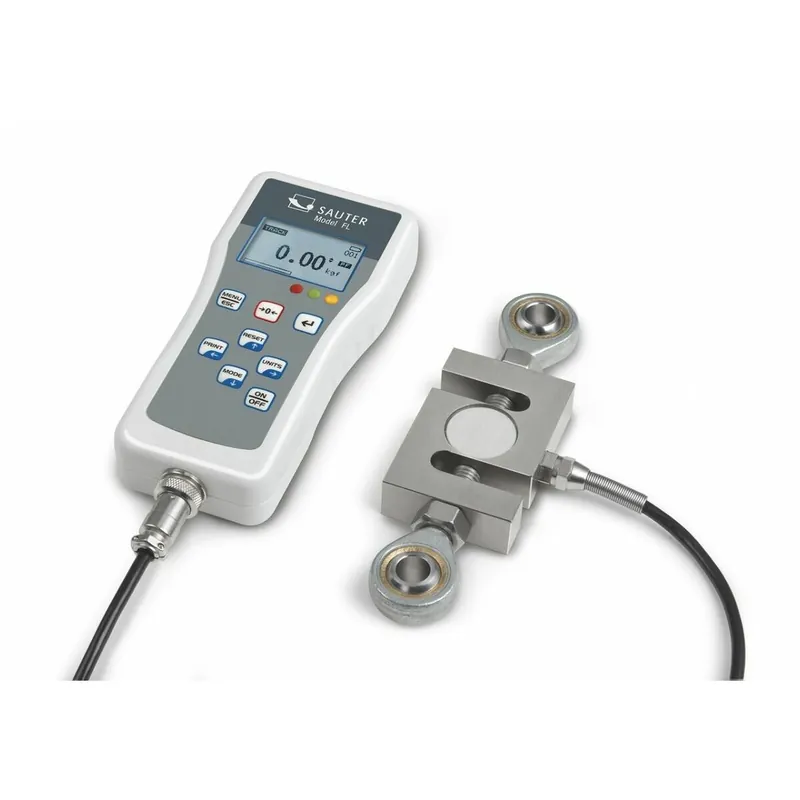

Elec. force gauge (external) FL 2K, Max N 2,5 kN, Readout 1 N Do wyczerpania zapasów

Opis

Opis:

• Turnable display with backlight
• Peak hold function to capture the peak value or Track function for continuous display of measurement
• Robust metal housing for permanent use under harsh environmental conditions
• Can be mounted on all SAUTER test stands
• Capacity display: A bargraph display lights up to show how much of the weighing range is still available
• Measuring with tolerance range (limit-setting function): Upper and lower limit adjustable, in pull and push direction. The process is supported by an audible and visual signal
• Internal memory
• Continuous analogue output: Linear voltage signal in dependence to the load (-2 to +2V)
• SAUTER FL 2K: with external sensor, Tension loops and pressure plates are included in delivery
• Standard attachments: as shown below
• Delivered in a robust carrying caseUSB interface, standardData interface RS-232 standard

Cecha szcz.:

• Internal measuring frequency: 1000 Hz
• Measuring precision: 0,2% of [Max]
• Overload protection: 120% of [Max]
• Housing dimensions WxDxH 175×75×30 mm
• Dimensions load cell W×D×H 76,2 x 51 x 19 mm
• Thread: M12
• Internal rechargeable battery pack, operating time up to 10 h without backlight, charging time approx. 8 h
